3. [동영상 강좌] - 박재성 (스프링 부트 ) - 1-2. HTML 페이지 개발

2017-09-03 18:46:12 By 머나먼나라 0 912 댓글수 4 포스트 하기

4월 2024
일	월	화	수	목	금	토
	1	2	3	4	5	6
7	8	9	10	11	12	13
14	15	16	17	18	19	20
21	22	23	24	25	26	27
28	29	30

## bootstrap 활용한 html 페이지 개발

* bootstrap start html 추가

* bootstrap css 라이브러리 추가

* jquery javascript 라이브러리 추가

* index.html => navigation bar 추가

* 회원가입 페이지 개발

bootstrap

http://getbootstrap.com/

http://getbootstrap.com/getting-started/

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <!-- The above 3 meta tags *must* come first in the head; any other head content must come *after* these tags -->
    <title>Bootstrap 101 Template</title>

    <!-- Bootstrap -->
    <link href="css/bootstrap.min.css" rel="stylesheet">

    <!-- HTML5 shim and Respond.js for IE8 support of HTML5 elements and media queries -->
    <!-- WARNING: Respond.js doesn't work if you view the page via file:// -->
    <!--[if lt IE 9]>
      <script src="https://oss.maxcdn.com/html5shiv/3.7.3/html5shiv.min.js"></script>
      <script src="https://oss.maxcdn.com/respond/1.4.2/respond.min.js"></script>
    <![endif]-->
  </head>
  <body>
    <h1>Hello, world!</h1>

    <!-- jQuery (necessary for Bootstrap's JavaScript plugins) -->
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.12.4/jquery.min.js"></script>
    <!-- Include all compiled plugins (below), or include individual files as needed -->
    <script src="js/bootstrap.min.js"></script>
  </body>
</html>

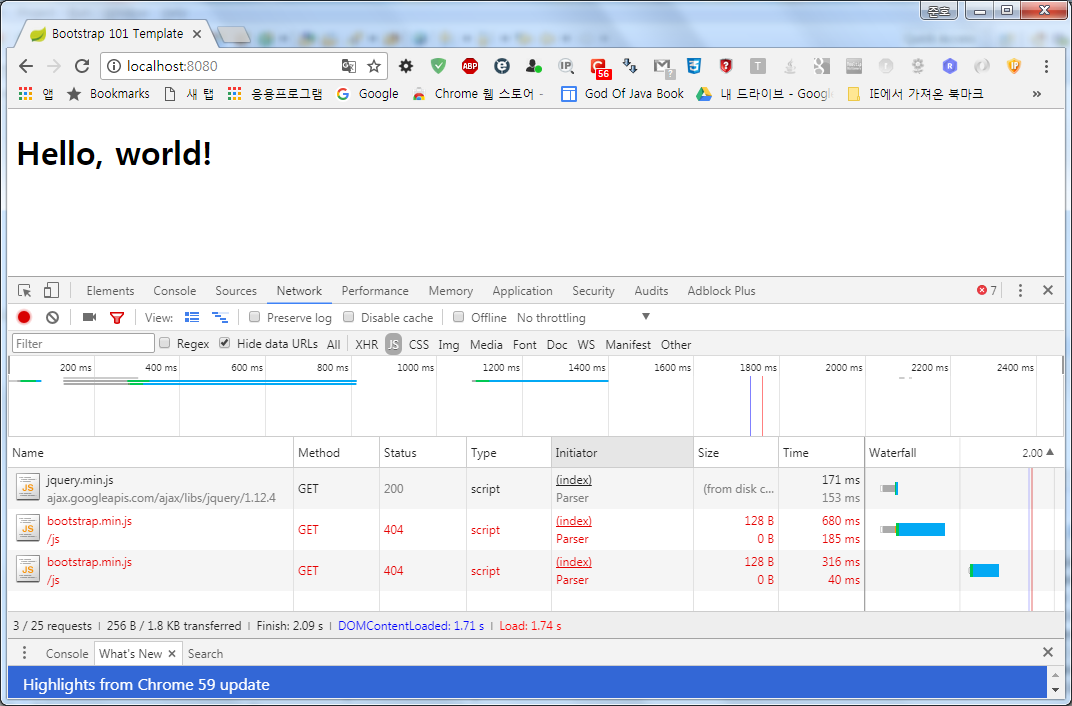

* 부트스트랩 서버를 실행해 보면 다운로드가 안 된 것을 볼 수 있다.

https://mvnrepository.com/

mvnrepository 에서 부트스트랩 검사 bootstrap

라이브러리 추가

<!-- https://mvnrepository.com/artifact/org.webjars/bootstrap -->
<dependency>
    <groupId>org.webjars</groupId>
    <artifactId>bootstrap</artifactId>
    <version>3.3.7-1</version>
</dependency>

mvnrepository 에서 jqery 검사 라이브러리 추가

		<!-- https://mvnrepository.com/artifact/org.webjars/jquery -->
		<dependency>
			<groupId>org.webjars</groupId>
			<artifactId>jquery</artifactId>
			<version>3.2.1</version>
		</dependency>

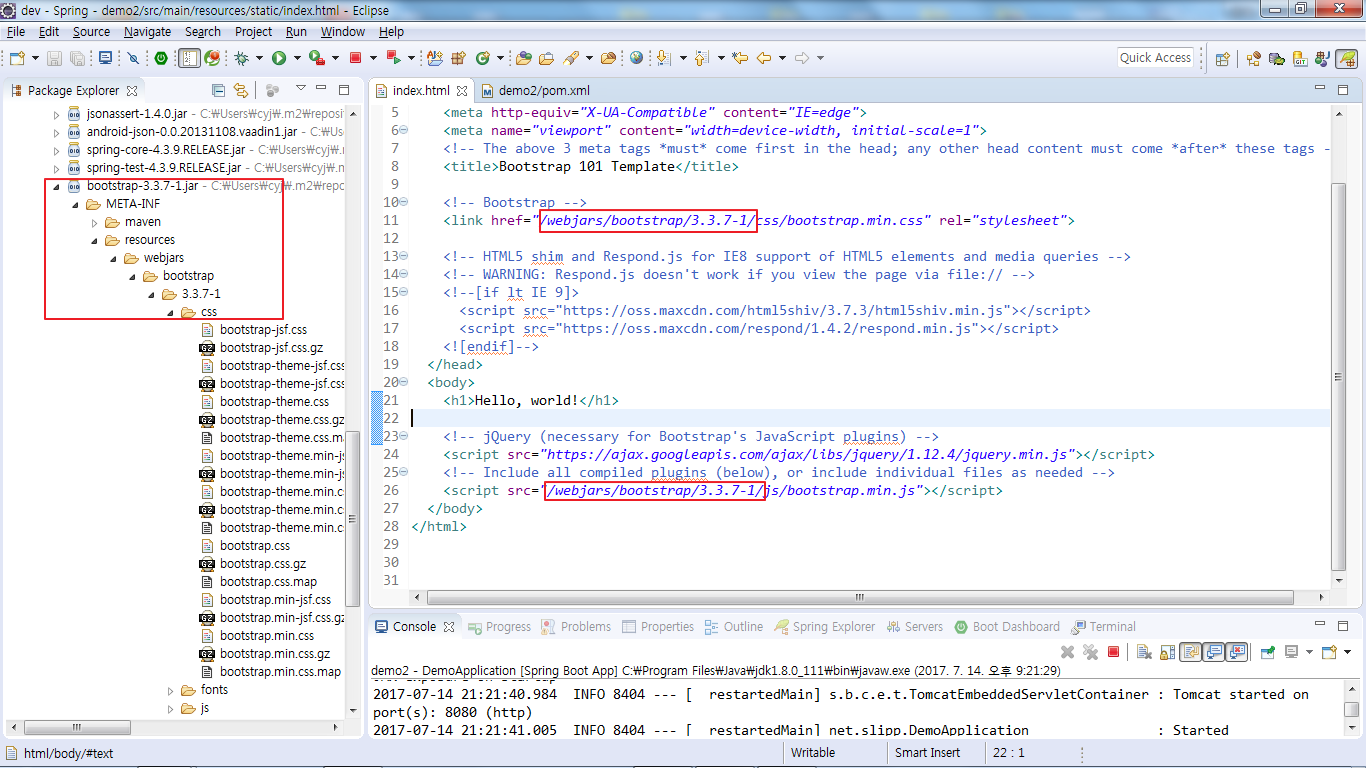

변경 코드

index.html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <!-- The above 3 meta tags *must* come first in the head; any other head content must come *after* these tags -->
    <title>Bootstrap 101 Template</title>

    <!-- Bootstrap -->
    <link href="/webjars/bootstrap/3.3.7-1/css/bootstrap.min.css" rel="stylesheet">

    <!-- HTML5 shim and Respond.js for IE8 support of HTML5 elements and media queries -->
    <!-- WARNING: Respond.js doesn't work if you view the page via file:// -->
    <!--[if lt IE 9]>
      <script src="https://oss.maxcdn.com/html5shiv/3.7.3/html5shiv.min.js"></script>
      <script src="https://oss.maxcdn.com/respond/1.4.2/respond.min.js"></script>
    <![endif]-->
  </head>
  <body>
    <h1>Hello, world!</h1>

    <!-- jQuery (necessary for Bootstrap's JavaScript plugins) -->
    <script src="/webjars/jquery/3.2.1/jquery.min.js"></script>
    <!-- Include all compiled plugins (below), or include individual files as needed -->
    <script src="/webjars/bootstrap/3.3.7-1/js/bootstrap.min.js"></script>
  </body>
</html>

네비게이션바 추가

http://getbootstrap.com/components/

index.html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <!-- The above 3 meta tags *must* come first in the head; any other head content must come *after* these tags -->
    <title>Bootstrap 101 Template</title>

    <!-- Bootstrap -->
    <link href="/webjars/bootstrap/3.3.7-1/css/bootstrap.min.css" rel="stylesheet">

    <!-- HTML5 shim and Respond.js for IE8 support of HTML5 elements and media queries -->
    <!-- WARNING: Respond.js doesn't work if you view the page via file:// -->
    <!--[if lt IE 9]>
      <script src="https://oss.maxcdn.com/html5shiv/3.7.3/html5shiv.min.js"></script>
      <script src="https://oss.maxcdn.com/respond/1.4.2/respond.min.js"></script>
    <![endif]-->
  </head>
  <body>

<nav class="navbar navbar-default">
  <div class="container-fluid">
    <!-- Brand and toggle get grouped for better mobile display -->
    <div class="navbar-header">
      <a class="navbar-brand" href="/">SLiPP</a>
    </div>

    <!-- Collect the nav links, forms, and other content for toggling -->
    <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">



      <ul class="nav navbar-nav navbar-right">
        <li><a href="/form.html">회원가입</a></li>
      </ul>
    </div><!-- /.navbar-collapse -->
  </div><!-- /.container-fluid -->
</nav>


    <h1>Hello, world!</h1>

    <!-- jQuery (necessary for Bootstrap's JavaScript plugins) -->
    <script src="/webjars/jquery/3.2.1/jquery.min.js"></script>
    <!-- Include all compiled plugins (below), or include individual files as needed -->
    <script src="/webjars/bootstrap/3.3.7-1/js/bootstrap.min.js"></script>
  </body>




</html>

form.html

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1">
<!-- The above 3 meta tags *must* come first in the head; any other head content must come *after* these tags -->
<title>Bootstrap 101 Template</title>

<!-- Bootstrap -->
<link href="/webjars/bootstrap/3.3.7-1/css/bootstrap.min.css"
	rel="stylesheet">

<!-- HTML5 shim and Respond.js for IE8 support of HTML5 elements and media queries -->
<!-- WARNING: Respond.js doesn't work if you view the page via file:// -->
<!--[if lt IE 9]>
      <script src="https://oss.maxcdn.com/html5shiv/3.7.3/html5shiv.min.js"></script>
      <script src="https://oss.maxcdn.com/respond/1.4.2/respond.min.js"></script>
    <![endif]-->
</head>
<body>

	<nav class="navbar navbar-default">
		<div class="container-fluid">
			<!-- Brand and toggle get grouped for better mobile display -->
			<div class="navbar-header">
				<a class="navbar-brand" href="/">SLiPP</a>
			</div>

			<!-- Collect the nav links, forms, and other content for toggling -->
			<div class="collapse navbar-collapse"
				id="bs-example-navbar-collapse-1">



				<ul class="nav navbar-nav navbar-right">
					<li><a href="/form.html">회원가입</a></li>
				</ul>
			</div>
			<!-- /.navbar-collapse -->
		</div>
		<!-- /.container-fluid -->
	</nav>



<div class="container">

	<h1>회원가입</h1>
	<form>
		<div class="form-group">
			<label for="exampleInputEmail1">아이디</label> <input
				type="text" class="form-control" id="userId"
				placeholder="아이디">
		</div>
		<div class="form-group">
			<label for="exampleInputPassword1">비밀번호</label> <input
				type="password" class="form-control" id="exampleInputPassword1"
				placeholder="Password">
		</div>

		<div class="form-group">
			<label for="name">이름</label> <input
				type="text" class="form-control" id="name"
				placeholder="이름">
		</div>
		<button type="submit" class="btn btn-default">Submit</button>
	</form>
</div>

	<!-- jQuery (necessary for Bootstrap's JavaScript plugins) -->
	<script src="/webjars/jquery/3.2.1/jquery.min.js"></script>
	<!-- Include all compiled plugins (below), or include individual files as needed -->
	<script src="/webjars/bootstrap/3.3.7-1/js/bootstrap.min.js"></script>
</body>




</html>
