업데이트 버전 2017년 3월 17일



























참조

(2016년 판) Google Maps Android API v2 사용해보기



Google Maps Android API v2 예제





AndroidMainfest.xml

추가

    <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
    <uses-permission android:name="android.permission.INTERNET"/>



        <meta-data
            android:name="com.google.android.geo.API_KEY"
            android:value="@string/google_maps_key" />



<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example.choi.mystudy28_1">



    <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
    <uses-permission android:name="android.permission.INTERNET"/>

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>

        <meta-data
            android:name="com.google.android.geo.API_KEY"
            android:value="@string/google_maps_key" />
    </application>

</manifest>

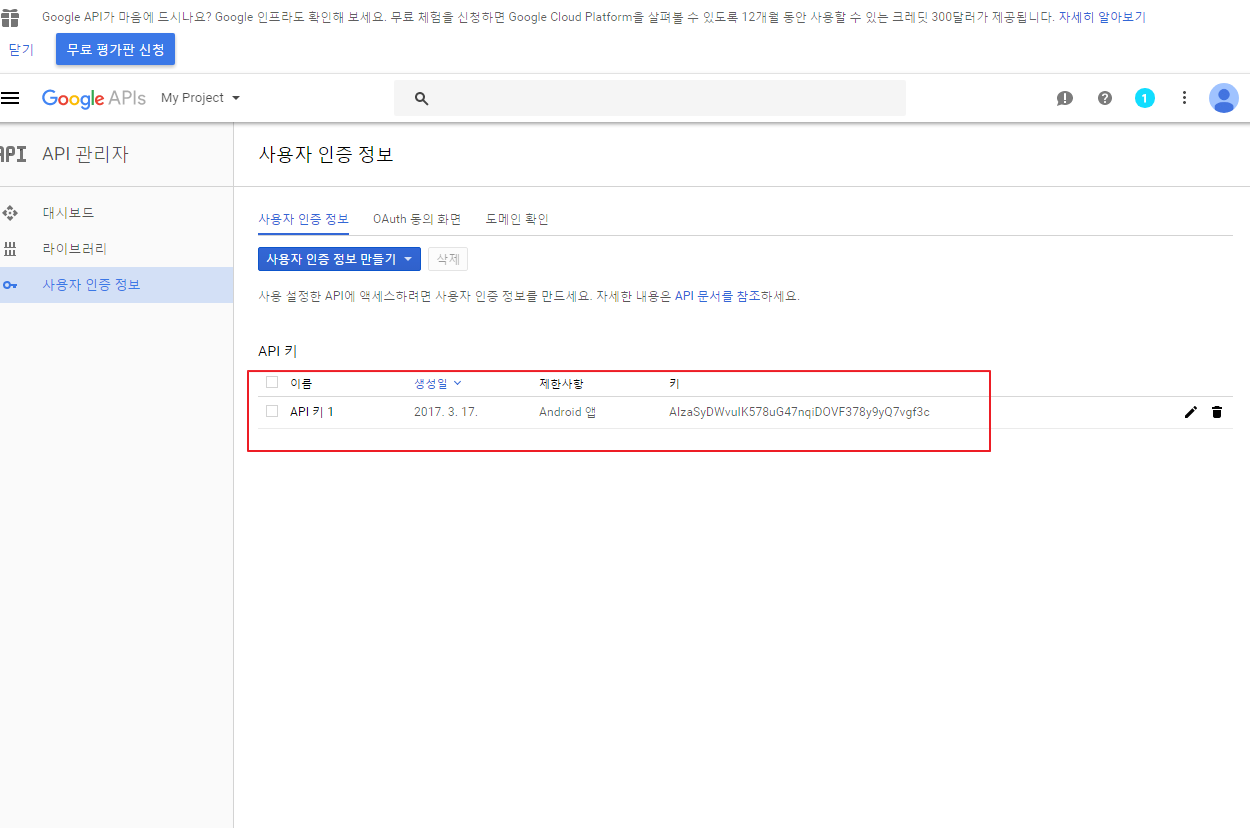

google_maps_key.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="google_maps_key" templateMergeStrategy="preserve" translatable="false">AIzaSyDWvuIK578uG47nqiDOVF378y9yQ7vgf3c</string>
</resources>





class MainActivity

package com.example.choi.mystudy28_1;

import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.Menu;

import com.google.android.gms.maps.CameraUpdateFactory;
import com.google.android.gms.maps.GoogleMap;
import com.google.android.gms.maps.MapFragment;
import com.google.android.gms.maps.OnMapReadyCallback;
import com.google.android.gms.maps.model.LatLng;
import com.google.android.gms.maps.model.Marker;
import com.google.android.gms.maps.model.MarkerOptions;

public class MainActivity extends AppCompatActivity  implements OnMapReadyCallback {

    static final LatLng SEOUL = new LatLng(37.56, 126.97);
    private GoogleMap googleMap;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        MapFragment mapFragment = (MapFragment) getFragmentManager()
                .findFragmentById(R.id.map);
        mapFragment.getMapAsync(this);
    }

    @Override
    public void onMapReady(final GoogleMap map) {
        googleMap = map;

        Marker seoul = googleMap.addMarker(new MarkerOptions().position(SEOUL)
                .title("Seoul"));
        googleMap.moveCamera(CameraUpdateFactory.newLatLng(SEOUL));
        googleMap.animateCamera(CameraUpdateFactory.zoomTo(10));
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        return super.onCreateOptionsMenu(menu);
    }






}



R.layout.activity_main

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/activity_main"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context="com.example.choi.mystudy28_1.MainActivity">

    <fragment
        android:id="@+id/map"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        class="com.google.android.gms.maps.MapFragment" />


</RelativeLayout>
